Do I need a special screen for an ultra-short-throw projector?

Yes. UST projectors arrive at the screen from a low, oblique angle (0.25:1 throw ratio or lower). Standard matte white fabric scatters this oblique light toward the viewer along with ambient ceiling light, washing out contrast. A Fresnel surface uses concentric optical prisms to redirect the UST beam straight toward the viewer while rejecting ceiling light. Using a standard screen with a UST projector produces poor contrast. Using a Fresnel screen with a standard-throw projector also produces poor results - the match must be correct in both directions.

What is the difference between Fresnel ALR and standard ALR screens for UST projectors?

Standard ALR screens (flat lenticular coatings) are designed for standard-throw projectors arriving from a centred, perpendicular angle. They do not match the extreme oblique angle of a UST projector and will deliver worse contrast than matte white when used with UST. Fresnel screens are specifically engineered for UST geometry - their concentric prism structure matches the low-angle UST beam and rejects ceiling light effectively. Always match screen type to projector throw type.

Can I use a regular projector screen with a UST projector?

You can, but the result will be disappointing. A matte white screen with a UST projector will show significantly reduced contrast because the oblique beam angle bounces ambient ceiling light directly toward the viewer. A standard ALR screen will perform even worse because its rejection pattern is calibrated for a different beam geometry. A Fresnel or purpose-built UST screen is required for acceptable contrast performance with a UST laser projector.

Shop Our Range

UST Screens

Name: Projector Screens
Brand: TrueThrow

5 screens available - Direct From the Manufacturer, 1-year warranty, free shipping across Canada on orders over $499.

PET Crystal Lenticular UST Projector Screen (BSP) — TrueThrow · Motorized Floor-Rising UST Projector Screen (HBSI TPU) — TrueThrow · Carbon-Black Lenticular UST Projector Screen (CBSP) — TrueThrow · Premium Carbon-Black Lenticular UST Projector Screen (HBSP) — TrueThrow · Fresnel ALR UST Projector Screen — High-Gain Laser TV

Ultra Short Throw

Laser TV Screens That Kill Ambient Light

Ultra-short-throw (UST) projector screens are engineered for laser TVs and UST projectors that sit just 10–30 cm from the screen. At that shallow projection angle, the beam arrives from near floor level — meaning conventional matte white or standard ALR screens produce severe hotspots, banding, and gain roll-off at the screen edges. Only purpose-built lenticular or Fresnel optics can handle UST geometry correctly.

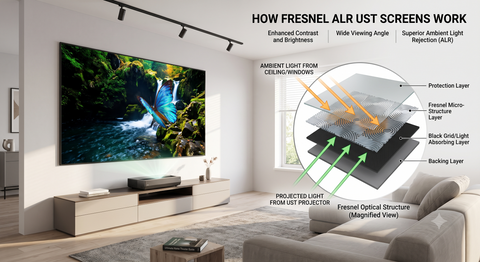

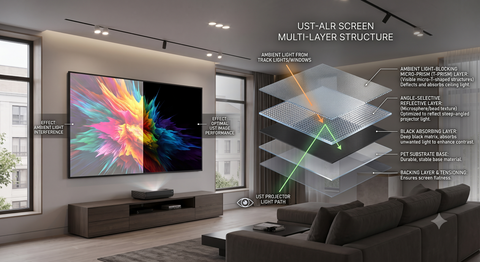

TrueThrow UST screens use three optical approaches. Lenticular carbon-black (CBSP, HBSP, BSP) screens use precisely spaced micro-lens structures to accept the low-angle UST beam while rejecting steep-angle ceiling light — the dominant ambient light source in a typical room. The Fresnel ALR (FRS) uses concentric ring optics to deliver 1.4 gain from a very compact throw, suited for bright rooms or projectors with lower lumen output. The HBSI TPU combines lenticular ALR fabric with a motorized floor-rising mechanism for rooms where a fixed screen installation is not desired.

All TrueThrow UST screens are 4K/8K compatible, ship direct-to-door to Canada with no brokerage fees, and carry a 1-year warranty. Compatible with Hisense TriChroma, Samsung The Premiere, LG CineBeam, AWOL Vision, BenQ V series, XGIMI, and all other major UST laser TV brands.

Selecting Your UST Screen

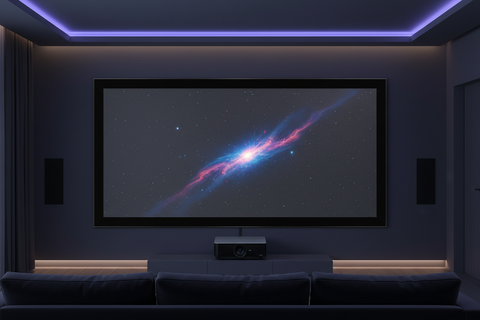

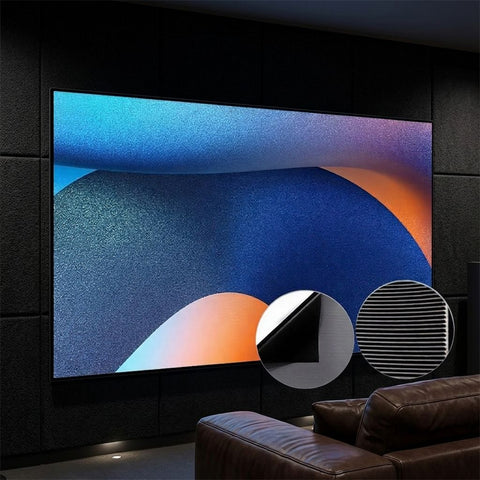

CBSP — 0.60 gain, 120–130″: flagship carbon-black lenticular for maximum contrast in lit rooms.

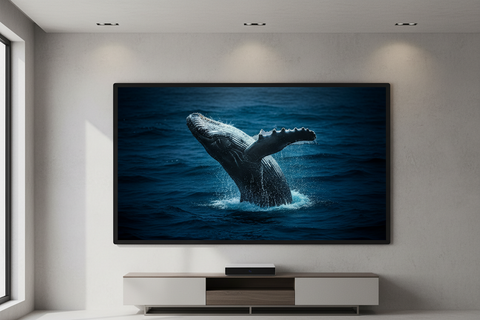

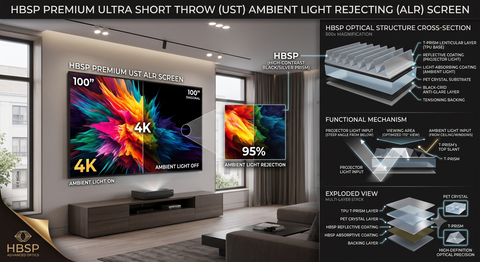

HBSP — 0.72 gain, 80–120″: premium carbon-black lenticular with a slightly wider gain for dimmer rooms.

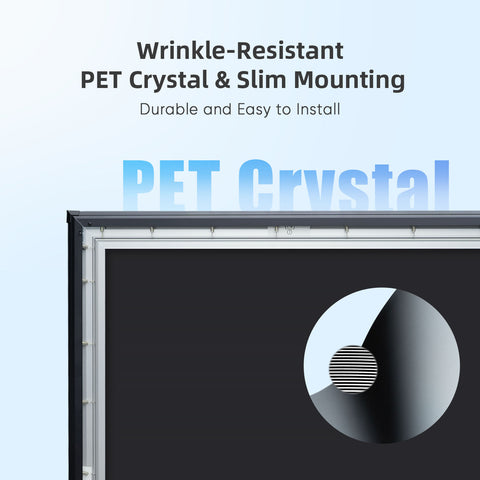

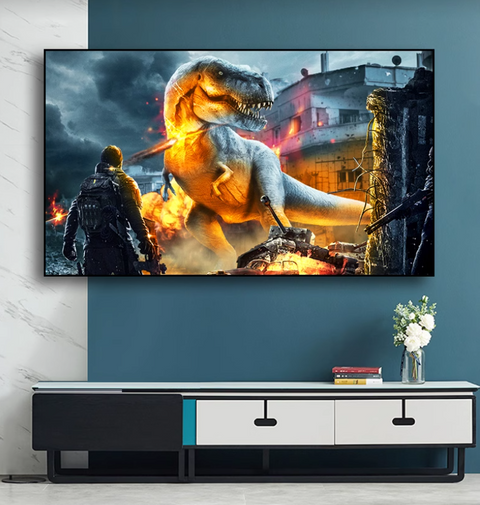

BSP (PET Crystal) — 0.60 gain, 80–120″: entry-level lenticular, value UST ALR screen.

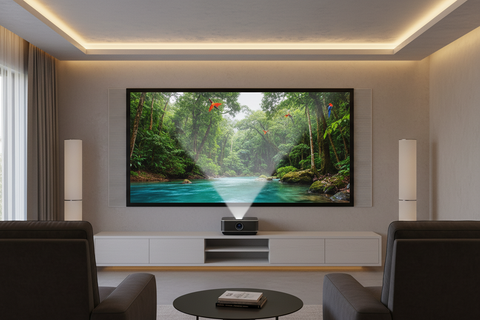

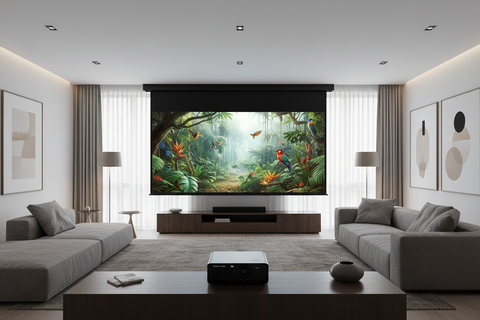

Fresnel (FRS) — 1.4 gain, 80–120″: highest-brightness UST ALR, for very bright rooms.

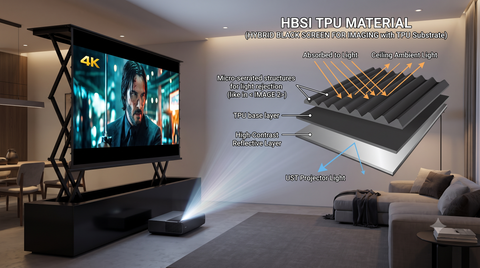

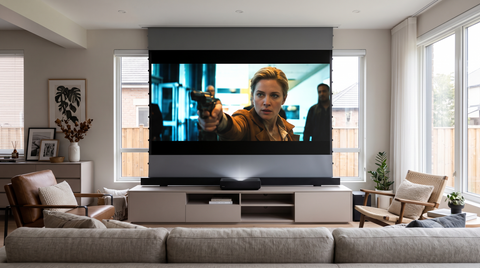

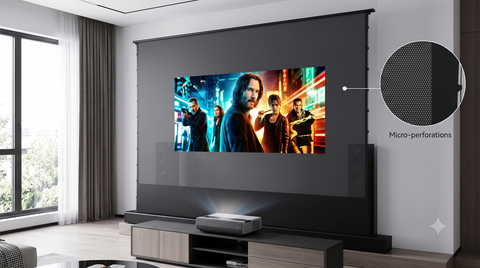

HBSI TPU — motorized floor-rising, 84–130″: lenticular UST ALR that disappears when not in use.

Not sure which UST screen fits your laser TV or projector? Read our Best UST Projector Screens Canada 2026 buyer guide.

▲

UST-Only Optics

Purpose-built lenticular or Fresnel surfaces accept the steep near-floor beam of a UST laser TV — conventional ALR screens produce severe hotspots at UST throw distances.

☀

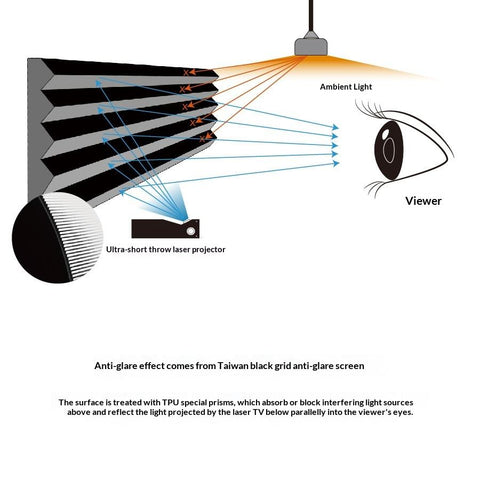

Ceiling Light Rejection

Lenticular and Fresnel structures reject steep-angle overhead light while passing the projector’s low-angle beam — critical for open-plan rooms with ceiling fixtures.

◎
